Home > Products > Series of Corn Flakes Processing Line

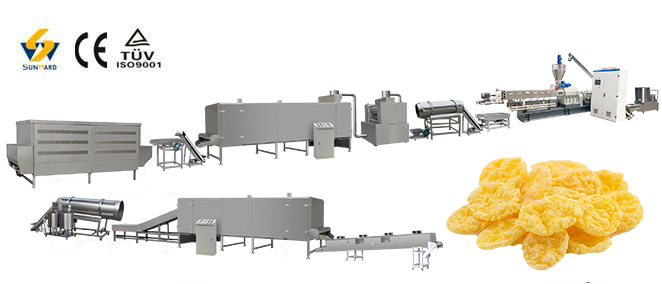

Corn Flakes Cereal Processing Line


 Corn flakes machine description:

1.Breakfast cereal manufactured by twin-screw extruder through the treatment of flakes of

grain, served with milk and marshmallows, were a very popular food among the families.

2. Raw materials: adopts corn flour, rice flour, other cereal flour as raw materials.

3. Breakfast cereal corn flakes processing line Products:

This line can be used to produce snacks, cereals by adjusting the molds from extruder

4. Corn flakes machine Capacity: 120-150kg/h, 200-250kg/h, 350-500kg/h

5. Corn flakes processing line Flow chart:

Mixing system---Extrusion system----Cooling system—Flaking system--Drying system—Toasted system---Sugar Spraying system ---Drying system---- Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel.

8. The biggest advantage: the screw can self-clean automatically and some models adopt the touch screen control system, that can set more exact production parameters and monitor the state of the extruder clearer.

Technical Parameters:

 Model  Installed Powder  Real Powder  Output  Dimension
 TSE65  130kw  90kw  100-120kg/h  39×1.5×2.5m
 TSE70  160kw  125kw  200-260kg/h  41×1.5×2.5m
 TSE75  180kw  140kw  250-350kg/h  52×1.5×2.5m
 TSE85  205kw  160kw  300-500kg/h  45×1.5×2.5m

Production Video:
