Small and Medium Capacity Pet Food Processing Line


Pet food is a nutritious food specially provided for dogs, cats, fish and other pets. Its function is mainly to provide pets with the most basic life guarantee, growth and health required nutrients. It has the advantages of comprehensive nutrition, high digestion and absorption rate, scientific formula, quality standard, convenient feeding and prevention of certain diseases.

Generally speaking, the pet food we often see and talk about in our daily life refers to dry-type puffed pet food, which also belongs to commercial pet food. It is a pet food that is made by mixing many nutrient materials, then puffing or extruding, and then drying, dehydrating, and seasoning. The moisture content is generally below 12%. This type of food is comprehensive and balanced due to its comprehensive nutrition. It has a long shelf life, convenient feeding and carrying, affordable price and more and more accepted and sought after by people. At the same time, it also has the characteristics of easy digestion and absorption. The digestibility of this type of dog food can reach about 70%. In addition,  the unit heat energy can reach 6.27~6.69KJ/kg, which is very rich in energy. Because of this, this kind of dog food has penetrated more and more into many families with pets.

Features of our pet food machinery :

  1.  In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.

  2. Pet Food Processing Line adopts corn flour, bone meal, fish meal as raw materials

  3. Different shapes can be made by adjusting the dies from extruder

  4. Output can be 100kg/h---1ton/h

    5. Self-cleaning, when stopping, it can be cleaned without disassembling.

  6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

  7. All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

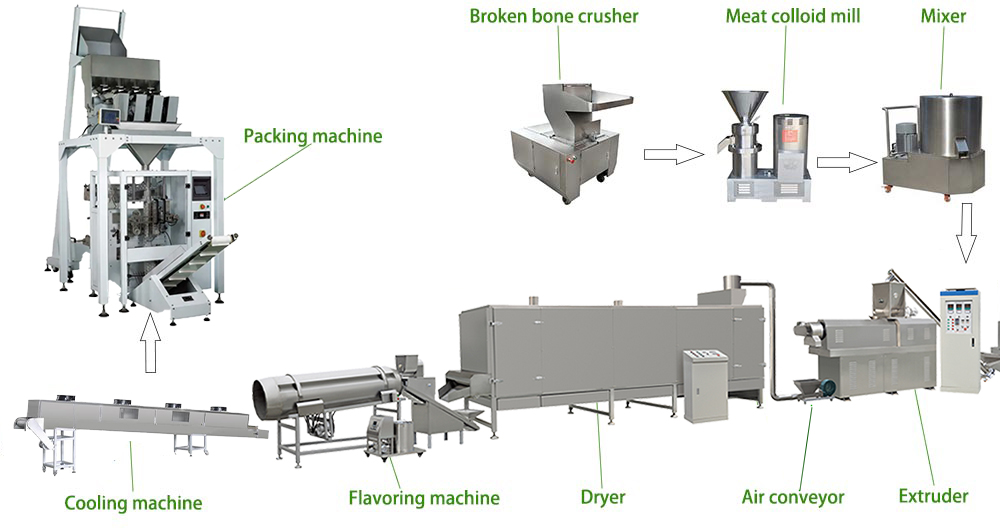

Flow chart:

Broken bone crusher---Meat colloid mill---Mixer---Pet food extruder---Air conveyor---Dryer---Flavoring machine---Cooling machine---Packing machine.
The broken bone crusher, which is used to grind animal bones (such as cow bones, pig bones, and chicken bones into bone grits).
The meat colloid mill is used for milling small bone and meat into paste.
The mixer is used for mixing raw materials.
The pet food extruder is used for curing, puffing, and forming raw material. Normally the big size of extruders contain a pre-conditioner which is used for pre-conditioning and pre-heating the raw materials through steam, the raw materials are softened, which is more conducive to molding, and at the same time reduces the wear and tear of the raw materials to the extruder machine.
The air conveyor is used to deliver products.
The dryer is used to dry pet food. According to the different energy sources, we have electric dryers, steam dryers, oil/gas dryers for you to choose from.
The flavoring machine is used to flavor pet food. This is a twin-drum flavor that is used to add powder or liquid condiments to pet food. We also have single-drum flavors and eight-square flavors for you to choose from.
The cooling machine is used to cool pet food before packing.
The packing machine is used to pack pet food. We have fully automatic and semi-automatic packing machines for you to choose from. Powder, granular and blocky products can be packed by the packing machines.

pet food production line

Technical Parameters:


 Model  TSE65-P  TSE70  TSE75  TSE85  TSE90
 Installed Powder  74kw  105kw  130kw  145kw  160kw
 Capacity  100-150kg/h  200-280kg/h  300-400kg/h  400-600kg/h  800-1000kg/h
 Dimension  17*1.5*2.2m  20*1.5*2.2m  25*1.5*2.2m  30*1.5*2.6m  40*2.0*3.5m

Related Products:

dog food

Client case:

Related News:

Our pet food machines running in a New Caledonian cat food factory

A small-scale dog food production line is sent to Georgia

Pet Food Production-Good Business During The Epidemic


Recommended Products:

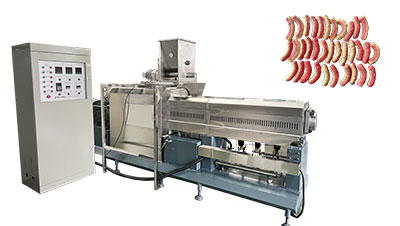

 Tow-color Pet Food Extruder

The small-capacity pet food production line

 can configure this extruder as well

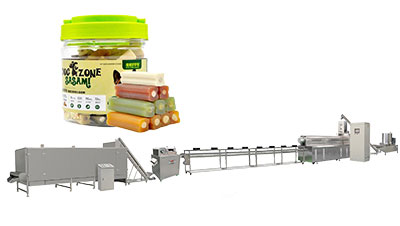

Pet Treats Processing Line

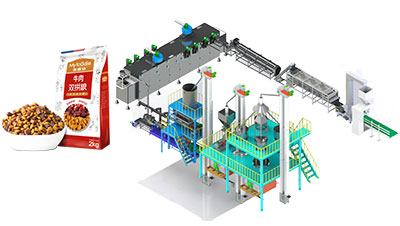

 Large Capacity Pet Food Processing Line
