Puff Snacks Processing Line




Features


1.Puff Snacks Processing Line can take corn, rice, wheat, oat, rye and other grains as materials to produce extruded snacks, with crispy taste and lively shape.

2.Different shapes of snacks can be produced such as Round, triangle, square, stars, flower, etc

3.The processing line is from feeding, extruding, core filling, shaping ,cutting , oil spraying to finished products are done once time automatically.

4.This processing line can produce all kinds of inflating foodstuffs, rice bread, core snacks, crackers, gruels, nutrient-flour, and baby food and so on.

5.The screws are made by ally steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.

6.The forced lubrication system, by guaranteed equipment transmission longer life.

7.Visible auto-temperature controlling system, make the temperature-controlling to be more direct-viewing, parameter to be more precise.

8.It also can be designed according to customer requirement;


Flow chart:

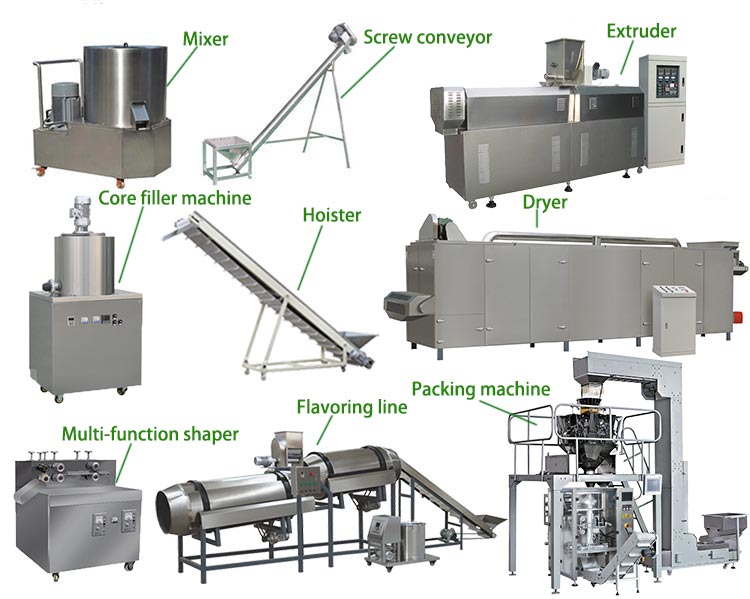

Mixer---Screw conveyor---food extruder---Core filler machine---Multi-function shaper---Hoister---Dryer---Flavoring line---Packing machine

 snack production machines



The mixer is used for mixing raw materials.

The screw-conveyor is used for delivering well-mixed raw material from mixer to food extruder.

The food extruder is used for curing, puffing, and forming raw material. Normally the big size of extruders contain a pre-conditioner which is used for pre-conditioning and pre-heating the raw materials through steam, the raw materials are softened, which is more conducive to molding, and at the same time reduces the wear and tear of the raw materials to the extruder machine.

The core filler machine is used for filling fillers (such as chocolate, jam, cream) to the snack food.

Multi-function shaper is used for forming different shape of snack food.

The Hoister is used for delivering products from Multi-function shaper to the dryer.

The dryer is used for drying snack food. According to the different energy sources, we have electric dryers, steam dryers, oil/gas dryers for you to choose from.

The flavoring machine is used for flavoring snack food. This is a twin-drum flavor that is used to add powder or liquid condiments to snack food. We also have single-drum flavors and eight-square flavors for you to choose from.

The packing machine is used to pack pet food. We have fully automatic and semi-automatic packing machines for you to choose from. Powder, granular and blocky products can be packed by the packing machines.


Technical parameters:



Model TSE65 TSE70 TSE75 TSE85 TSE95
Installed Power 74kw 74kw 160kw 170kw 195kw
Capacity 100-150kg/h 200-260kg/h 300-400kg/h 400-500kg/h 800-1200kg/h
Dimension 17000×1500×2200mm 17000×1500×2200mm 25000×1500×2200mm 30000×1500×2600mm 40000×2000×3500mm


Video of production puffed snacks:




Product Samples:


Related Products:

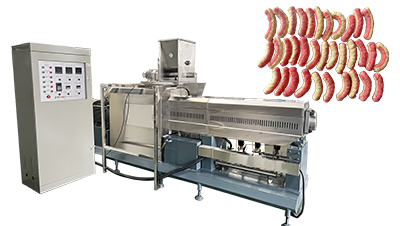

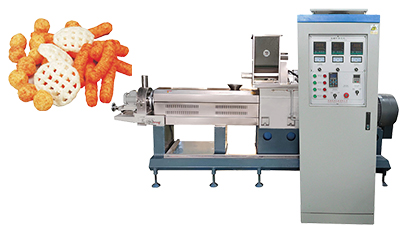

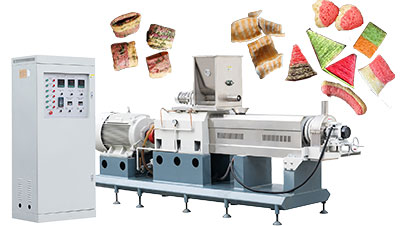

 Two-color Puffed Food Extruder  Three-screw extruder  Twin Screw Extruder
